Pharma & Personal care machinery
 Products > Pharma & Personal care machinery > Flow Wrap Machine

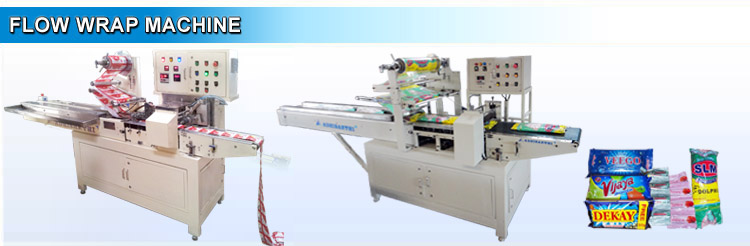

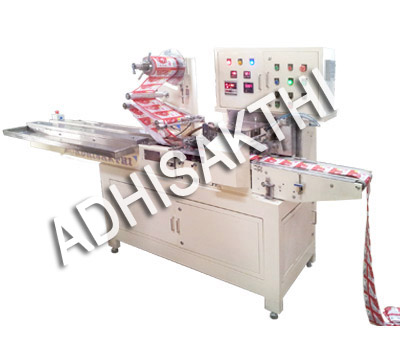

  • The Horizontal Flow Wrap machine packs solid products in heat sealable laminates to a pillow pack
  • Products like tubes, soaps, detergent bars, bearings, medical syringe etc can be wrapped.
  • Product contact parts are made of SS 304.
  • PID based temperature controllers.
  • The speed of the machine varies from 50 pcs per minute to 120 pcs per minute.
  • The machine runs with the help of positive infinite variable speed drive.
  • Change over between products is easy and simple.
  • Easy access to all moving parts for lubrication and maintenance.
  • The machine is designed to be simple and user friendly without any complications.
  • Catridge type heaters on the heat sealing rollers.
  • Products counter is provided as an optional accessory.
  • Online perforation blades are adjustable for cutting to individual pieces.
  • Direct online link up facility from the infeed line.
  • For soap packaging, the machine is suitable to link up online with ADHISAKTHI's pneumatic cutting machine.
  • Forward link up provision with ADHISAKTHI's Cartoning Machine.
  • Option of ADHISAKTHI's Auto Case Packer link up system enables complete end of line automation optimizing manpower shortages.

Model HFM-120
Speed (Pcs/Min) Up to 120*
Pouch Size (LxW) in mm 200 x 150
Auto Product in Feed Optional
Power Required in KW 4.00
Dimension (L x B x H) 3793 x 750 x 1529 mm
Weight (Approx.) 800 kgs.
Online Batch Coding Optional
Depends upon product shape, packing material etc.
Specifications are subject to change as a part of continuous improvements.
