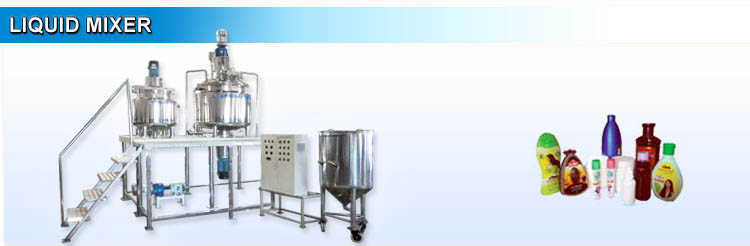

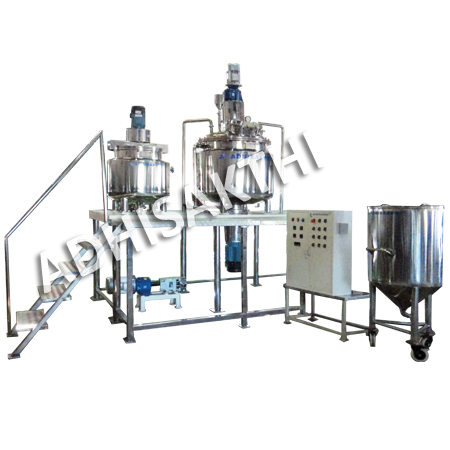

Adhisakthi design and deliver Liquid manufacturing plants to manufacture various types of liquid products

• Syrup

• Creams, Lotions, Gel & Balm (The products which do not need vacuum facility)

• Shampoo
• Liquid Soap
• Chemicals etc.

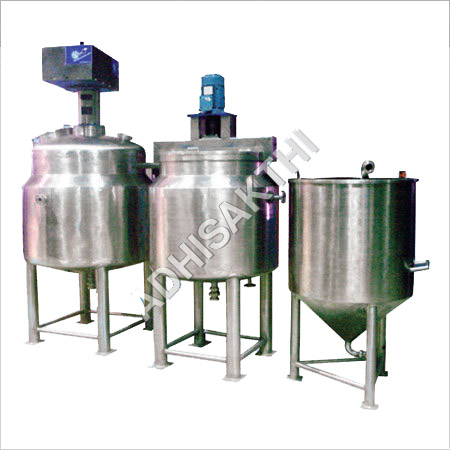

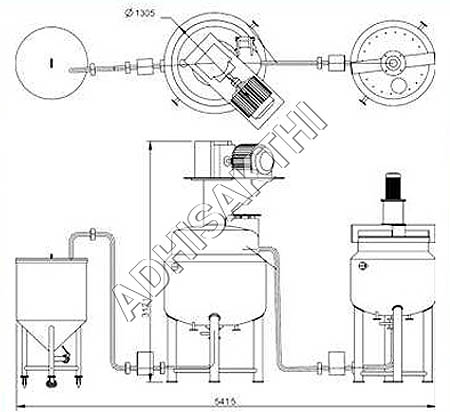

1. Main Mixing Vessel
2. Phase Vessel
3. Storage trolleys
4. Working Platform

• The vessel is jacketed for steam and cold water circulation.
• Product contact points are made of SS 316L, Class 4 B (mirror finish)

• Vessel is insulated with mineral wool with SS 304 cladding

• The vessel is supported by 3 legs placed at equal 120 deg angles

• The top dish supports three agitation assembly

• Top dish is provided with the following 400 mm dia manhole / 100 mm dia light glass / 25 phase vessel inlet 50 mm dia Butterfly discharge valve 10 mm dia temperature sensor

• The agitator is driven by a suitable geared motor

• The anchor stirrer is made of SS 316 L consisting of plates rotating at a speed of 50 rpm.

• Product contact points: SS 316L, Class 4 B (mirror finish)
• The vessel is jacketed for steam and cold water circulation made up of SS 304

• The jacket is insulated with mineral wool and SS 304 cladding.
• Propeller type agitator is used for the phase vessel which rotates at 960 Rpm

• Cylindrical in shape with conical bottom vessel 3 mm thick.

• Flat top lid and provided with 40 mm butterfly discharge valve.

• The vessel is mounted on 3 legs and castor wheels.

• All product contact points are made of SS 316 L finished to class 4 B

• Covers are made of SS 304 finished to class 2 B stain finish.

1. Circulation pump
2. Steam lines
3. Transfer pipe lines
4. Working Platform
