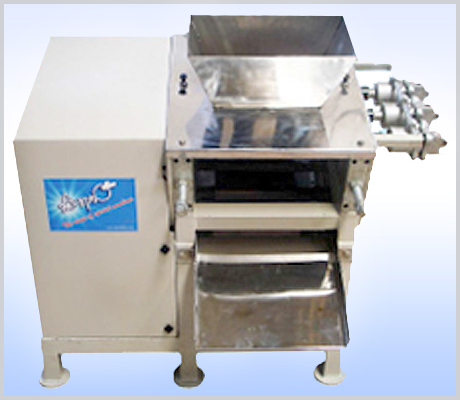

- Triple Roll Mill is used to mill, refine, homogenous, flake thick paste materials to thin sheet forms.
- Application of the triple roll mill are found in most industries where fine smooth finish is required without gritty substances.
- ADHISAKTHI manufactures triple roll mill with both chilled cast steel rolls or of SS constructions depending upon customer requirements.
- The rolls rotate opposite to each other at varying speeds.
- Gaps between the rolls are adjustable.
- End scrapers are provided to enable material discharge which are adjustable.
- Drip trays provided to avoid spillages.
- Rexroth coupling at the roll sides enable chilled water circulation in to the rolls.
|
Model |
Aspro-TRM-100 |
Aspro-TRM-250 |
Aspro-TRM-500 |
Aspro-TRM-1000 |
Aspro-TRM-2000 |
| Output (Kgs/Hr) |
Up to 100 |
Up to 250 |
Up to 500 |
Up to 1000 |
Up to 2000 |
| Roll Diameter / Length in mm |
150x400 |
200x500 |
250x600 |
300x700 |
400x900 |
| Roll MOC |
Chilled Cast Steel Roll With Hardened SS sleeve |
| Power Required in KW |
2.2 KW |
7.5 KW |
15.0 KW |
22.5 KW |
30 KW |
| Roller Speed in RPM-Slow |
90 |
90 |
85 |
85 |
80 |
| Middler Roller |
145 |
145 |
130 |
130 |
120 |
| Fast Roller |
220 |
220 |
195 |
1995 |
180 |
| Dimension (LxBxH) |
1400x950x1050 |
1900x1000x1150 |
2500x1100x1150 |
2600x1500x1200 |
2850x1550x1200 |
| Weight (Approx) in Kgs |
350 |
1130 |
2450 |
3700 |
3950 |
| * Production rate depends upon the material characteristics |
Specification are subject to change as apart of continuous improvement |
